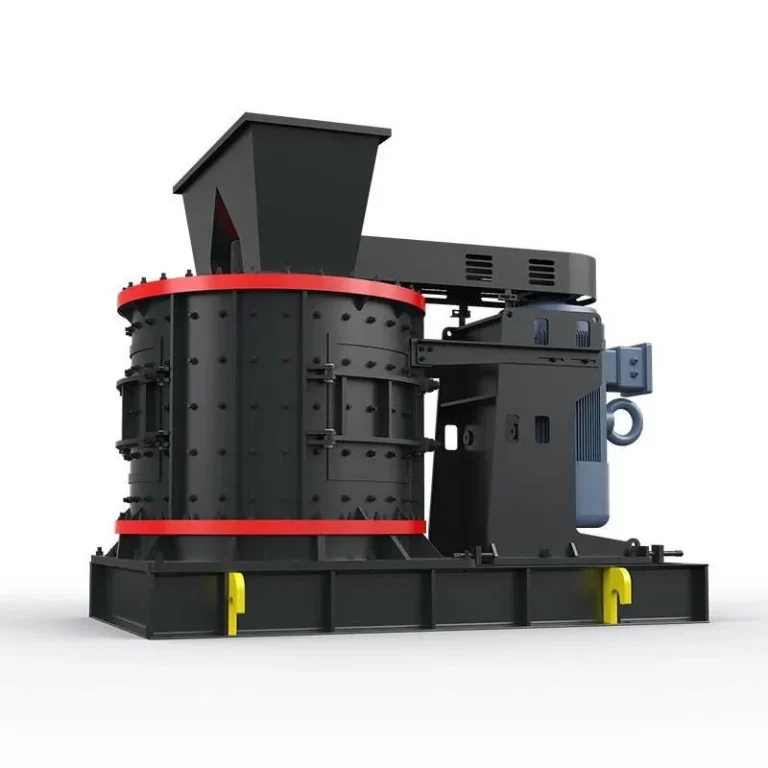

compound stone crusher
1、 Symons Crusher Parts are interchangeable with the original parts, only need to provide the original part number can be made, material and size are in line with the original quality.
2、Symons Parts production of fine arts perfection, the original material are the use of the best materials, so that users can rest assured that whether before or after the purchase of the purchase can be assured that the use of procurement.
3、Symons Crusher Parts are smooth and not rough, after rigorous testing and testing, to meet the requirements of a variety of crushing machines, and provide the necessary flexibility to ensure high efficiency and productivity.
2、Symons Parts production of fine arts perfection, the original material are the use of the best materials, so that users can rest assured that whether before or after the purchase of the purchase can be assured that the use of procurement.
3、Symons Crusher Parts are smooth and not rough, after rigorous testing and testing, to meet the requirements of a variety of crushing machines, and provide the necessary flexibility to ensure high efficiency and productivity.
Product Description
HX vertical combination crusher usage
According to the market demand and by combining the domestic and abroad advanced crushing technology,our
company developed the HX series vertical combination crush er.They are widely used for crushing various materials like stone,granite,trap rock,coke,coal,manganese ore,iron ore,emery,fused aluminum,oxide,fused
calcium carbide,lime stone,quartz ,alloys,etc.It is the ideal equipment for article sand and road stone making.
Main technical parameters
| Type | 800 | 1000 | 1250 | 1500 | 1750 | |
| Rotor diameter(mm) | 650 | 800 | 1000 | 1250 | 1560 | |
| Cylinder height(mm) | 800 | 850 | 850 | 1000 | 1410 | |
| (r/min)Main shaft rotation speed | 1350 | 970 | 740 | 650 | 600 | |
| Feeding size(mm) | 20 | 20 | 30 | 30 | 35 | |
| Discharging size(mm) | 5-10 | 5-10 | 5-10 | 5-10 | 5-10 | |
| Processing capacity(t/h) | 3-10 | 5-20 | 8-30 | 10-40 | 15-50 | |
| V-belt | B2700 B27004 pieces | C 3 1 5 0 C31507 pieces | D 4 3 0 0 D43007 pieces | 25J4500 25J45007pieces | 25J4500 25J45009 pieces | |
| Oil seal | 3616×2(80×170×58) | 3620×2(100×215×73) | 3624×2(120×260×86) | 3626×2(130×280×93) | 3628×2(140×300×1022) | |
| 8314×1(70×125×40) | 8318×1(90×155×50) | 8224×1(120×170×39) | 51326×1(130×225×75) | 51228×1(140×200×46) | ||
| Bearing | 80×110×12×1 | 95×125×12×2 | 140×170×15×4 | 160×190×16×4 | 180×220×18×4 | |
| 90×110×12×2 | 110×140×14×4 | |||||
| Model | Yseries-4 | Y series-4 | Y series-6 | Y series-8 | Y series-8 | |
| Power(kw) | 30 | 55 | 132 | 160 | 200 | |
| Rotation speed | 1440 | 1440 | 750 | 750 | 750 | |
| Dimensions (L×W×H)(mm) | 2200×860×1980 | 2700×1160×2000 | 2800×1400×2730 | 3100×1900×2300 | 3350×2100×2800 | |
Characteristics
This machine is suitable for dry and wet crushing with high reduction ratio;It is perfect for crushing of materials with high moisture.The discharging size can be adjusted freely,there is no grizzly bar.High silt content materials will not be blocked.Materials that can not be crushed will be discharged automatically and do no damage to the machine.The materials flow directly and the production efficiency is high.It also has the features of high efficiency,special structure,fluent operation,low noise pollution,and easy-to-maintain. It is easy to change wearing parts by opening the manhole.
Installation and test run
1.Install the crusher onto horizontal concrete foundation and fasten the anchor bolts.
2.Make sure the levelness of the foundation.Crusher should be vertical to the foundation.
3.Check and fasten all the bolts and the manhole.
4.Allocate the power cable and control switch according to the machine’s power.
5.Start the crusher for the unloaded test run;begin the production after the normal test run.
Wearing parts
1、hammer
2、bearing 3、impact liner
Common malfunctions and troubleshooting
| Trouble | Reason | Solution |
| The discharging size is too small | Excessive hammer | Reduce hammer:one layer or two layers. |
| The discharging size is too large | V-belt too loose or therotation speed too slow | Tighten the V-belt,check the voltage. (380V is OK).Accelerate the motor speed. |
| Main machine swings | Rotor imbalance |
