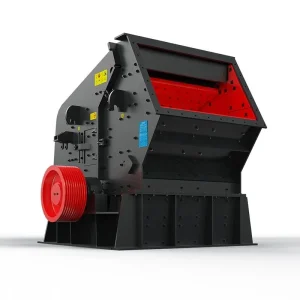

impact crusher
1、 Symons Crusher Parts are interchangeable with the original parts, only need to provide the original part number can be made, material and size are in line with the original quality.
2、Symons Parts production of fine arts perfection, the original material are the use of the best materials, so that users can rest assured that whether before or after the purchase of the purchase can be assured that the use of procurement.
3、Symons Crusher Parts are smooth and not rough, after rigorous testing and testing, to meet the requirements of a variety of crushing machines, and provide the necessary flexibility to ensure high efficiency and productivity.
2、Symons Parts production of fine arts perfection, the original material are the use of the best materials, so that users can rest assured that whether before or after the purchase of the purchase can be assured that the use of procurement.
3、Symons Crusher Parts are smooth and not rough, after rigorous testing and testing, to meet the requirements of a variety of crushing machines, and provide the necessary flexibility to ensure high efficiency and productivity.
Product Description
Equipment Introduction
Cl series of new type impact crusher integrates the current domestic and international advanced impact crusher technology, the rotor and crushing cavity are refined design for different applications,and a large number of new high wearresistant mate- rials are used,which are greatly improved the performance and processing capacity of the equipment.It exhibits excellent
crushing effect in applications of industries such as medium hardness and low abrasive quarrying and gravel,cement,con- crete and asphalt recycling,slag recycling etc.
Equipment Advantage
The precise design of the rotor and cavity type,speed and power are reasonably matched to meet the different applications of coarse
crushing,medium and fine crushing and material recovery;
The sturdy heavy-duty rotor structure improves the equipment handling capacity and crushing ratio;the high-quality welding structure ensures that the machine can withstand the maximum impact and obtain a good crushing effect;
The ship plate hammer,firm locking structure,has a good impact resistance,anti-wear properties and maintain a stable discharge particle size;
A large number of new high wear-
resistant materials are used to
reduce the loss of wear parts,extend the replacement cycle,and save
costs;
Hydraulic cover opening and
discharge port clearance hydraulic auxiliary adjustment,reduce labor intensity,shorten downtime;
The device is equipped with avariety of safety locking devices to improve safety performance and reduce labor intensity;
Internal Structure
① Bearing ② Grease
seat
lubrication
③
Impact liner
④Pulley
⑤
Main shaft
⑥
Hammer Plate
⑦ Rotor
⑧
Welding frame
⑨
Impact rack
Indicative Gradation Curve
Technical Parameter
| Model | Maximum Feeding Size(mm) | Power(kW) | Processing Capacity(t/h) | Dimensions(LxWxH)(mm) |
| Impact crusher | ||||
| CI1110 | 250 | 160 | 60-210 | 2826×2087×2285 |
| Cl1213 | 300 | 200 | 80-280 | 2903×2530×2411 |
| Cl1316 | 300 | 250 | 100-350 | 3320×2770×2535 |
| Cl1521 | 350 | 2×(200-250) | 200-600 | 3450×3620×2770 |
| Impact crusher | ||||
| Cl1313 | 600 | 200 | 100-480 | 2972×2560×2937 |
| Cl1415 | 600 | 250 | 120-600 | 2985×2790×3068 |
| Cl1620 | 800 | 2×(200-250) | 220-900 | 4261×3480×3780 |
| CI2023 | 800 | 2×500 | 400-2000 | 5151×4424×4712 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
Any Change of the technical data shal not be advised aditionally.plase make the wight and the dimensions of the object as the standard.
FOTE HEAVY
PF系列
反击式破碎机
PF SERIES
IMPACTCRUSHER
Equipment Introduction
PF impact crusher is an efficient impact crusher developed by our company in absorbing advanced technologies at home and abroad and combining with the working conditions of the sand and gravel industry.
Unique structural design and advanced manufacturing technology has been adopted on this crusher design.The impact
crushers are widely used in the crushing of low-abrasive materials with medium hardness and below such as railways,high- ways,energy,building materials,chemical industries and other industries.
Equipment Advantage
>> High Efficiency And Energy-saving
Big feeding inlet and high crushing chamber,which are
applicable for large—lump hard materials with low powder rate.
>> Fantastic Particle—type
The interval between impact plate and hammer can be easily adjusted,which effectively control the discharging size and ensure good particle shape.
>> Unique Structure
Compact structure;strong rigidity;the rotor has a large moment of inertia.
Technical Parameter
>> High Comprehensive Efficiency
| Model | Specificaions(mm) | Feed Opening(mm) | Max.Feeding size(mm) | Processing Capacity(t/h) | Power(kW) | Dimensions(L×W×H)(mm) |
| PF1007 | Φ1000×700 | 400×730 | 300 | 30-70 | 4P 37-45 | 2330×1660×2300 |
| PF1010 | φ1000×1050 | 400×1080 | 350 | 50-90 | 4P 45-55 | 2370×1700×2390 |
| PF1210 | φ1250×1050 | 400×1080 | 350 | 70-130 | 6P 110 | 2680×2160×2800 |
| PF1214 | ①1250×1400 | 400×1430 | 350 | 80-180 | 6P 132 | 2650×2460×2800 |
| PF1315 | Φ1320×1500 | 860×1520 | 500 | 100-280 | 6P 200 | 3180×2720×3120 |
| PF1320 | Φ1320×2000 | 993×2000 | 500 | 140-380 | 6P 250 | 3220×3100×3120 |
| PF1520 | φ1500×2000 | 830×2040 | 700 | 200-550 | 4P 315-400 | 3959×3564×3330 |
| PF1820 | Φ1800×2000 | 1260×2040 | 800 | 300-800 | 6P 630-710 | 4400×3866×4009 |
High chromium hammer,resistance to wear,large impact force.
