Jaw crusher
1、 Symons Crusher Parts are interchangeable with the original parts, only need to provide the original part number can be made, material and size are in line with the original quality.
2、Symons Parts production of fine arts perfection, the original material are the use of the best materials, so that users can rest assured that whether before or after the purchase of the purchase can be assured that the use of procurement.
3、Symons Crusher Parts are smooth and not rough, after rigorous testing and testing, to meet the requirements of a variety of crushing machines, and provide the necessary flexibility to ensure high efficiency and productivity.
2、Symons Parts production of fine arts perfection, the original material are the use of the best materials, so that users can rest assured that whether before or after the purchase of the purchase can be assured that the use of procurement.
3、Symons Crusher Parts are smooth and not rough, after rigorous testing and testing, to meet the requirements of a variety of crushing machines, and provide the necessary flexibility to ensure high efficiency and productivity.
Product Description
German Jaw Crusher
–
09/10

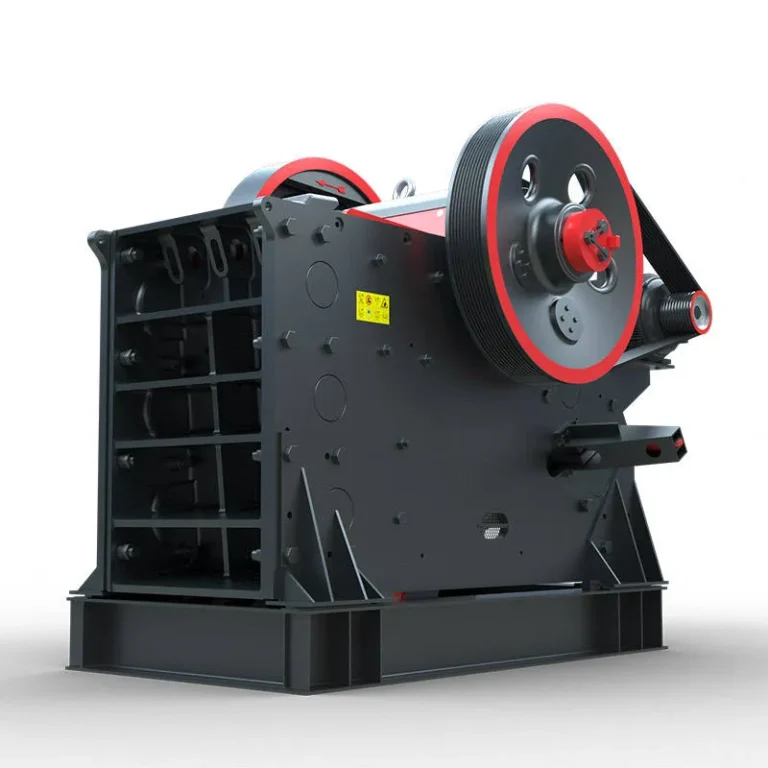

Jaw Crusher
-Main factor of Productive and Stable Crushing Line
In mining and crushing industry,jaw crusher,as the primary crusher in a crushing line,its performance plays an important role in the running of complete crushing line;therefore,users have an increasing demand on the capacity and stability of jaw crusher.In accordance with the desired market,engineers in KENEX GROUP ,combining 20-year experiences in the crushing industry,have developed HD high-efficiency jaw crusher together with German engineers;it makes a significant \breakthrough of capacity and quality-improving in the crushing production line.
With the perfect optimization of crushing cavity and working parameters,HD jaw crusher stands out in terms of a higher capacity and superior product quality,and wider availability as well.It can be used in various industries,such as metal and non-metallic ores, construction,sand and stone crushing,cement and metallurgy,especially doing well in crushing hard materials.
Upgraded Structural Design
一HD Jaw Crusher-High Capacity and Reliable Performance
| 1 EccentricShaft | Careful forging and heat treatment ensures an optimum speed and a higher throughput.Larger bearings in both sides guarantee greater bearing capacity and reliability. |
| 2 Flywheel | Numerous calculations and designs effectively eliminate the unbalanced vibrating force caused by the eccentric motion.Perfectly match with the counter weight buffers the vibration for a more stable and reliable performance. |
| 3 Frame | E-shaped frame with reasonable distribution of strengthening rib,making the machine more stable and strong.Thee operation vibration is small,noise is low.Bolt locking system of the side plate makes the running more efficient and convenient. |
| 4 Jaw plate | Optimized curvy-shape design can improve the capacity and reduce the wear.Thicker manganese steel alloy material ensures longer life span.Symmetric design,jaw plate can be re-placed upside down for prolonged utilization. |
| 5 Bearing Base | Optimized structure stabilizes the operation which further reduces the harm to the bearings in case of any deformation. Special placement can effectively eliminate the crushing force. |
| 6 AdjustmentDevice | Fast discharge opening setting adjustment can be realized by the screw pole or the hydraulic cylinder. |
| 7 LubricationSystem | Concentrated lubrication and common lubrication connecting joint allow lubrication efficient and convenient. Labyrinth seal effectively reduces the dust pollution. |
| 8 Crushing Cavity | Optimized cavity design,precise eccentric throw calculation and scientific movable jaw design can improve the capacity by 30%-50%. |
HD German Jaw Crusher
-Dedicated to Achieve All Your Crushing demands.
Lower Vibration &More Stable Operation
Through careful structural study of the fly wheel an sheave wheel as well as precise calculation of the balancing weight,the overall structure and the counter weight part are optimized,the operational vibration is effectively reduced and stability increased.
With a more reasonable structural placement,the flywheel can effectively reduce the imbalanced force caused by the eccentric motion, preventing the crusher from mechanical damage in case of imbalanced vibration and saving the installation space simultaneously.
Two super large bearings effectively ground the movement of the movable jaw assembly,contributing to a larger crushing load and higher stability.
Optimized Structure Design
Curvy-shape Jaw Plate
Reasonable Design ofFly Wheel
Super Large Bearing
World-class Craftsmanship for Higher Durability
The great performance of HD series high-efficiency jaw crusher arises from its elaborate design and strong structure.
New design philosophy on machine frame to reduce the installation space on the basis of guaranteeing the stiffness of the frames.
The HD series jaw crusher has feature of extraordinary durability because the movable jaw plate assembly is made of high quality cast steel movable jaw plate,forging eccentric shaft and large roller bearing.
Low suspension point design can improve the force condition of bearing pedestal which can increase the life-span of bearing.
Optimized structural design combined with two large fly-wheels and proper rotation speed provide strong power and good crushing performance for HD series jaw crusher which make this machine have finer outputs.
Symmetrical curve tooth plate design,optimized tooth structure and thickness prolong the plates service life.
Humanization Design&Easy to Maintain
Advanced bolt-1ocking system of the side plates and user-friendly hoist hole design simplify the replacement of side plates and toggle plate. During the lubrication process,the cross gas of labyrinth seal structure can outwardly automatically fill the grease which can prevent the dust and other fine particles enter into the bearing house and dirt the grease,so as to prolong the service life
Use the screw and hydraulic cylinder to control the movement of adjusting base,so it will be easy to adjust the discharge opening and make it easy to maintain the machine.
Centralized lubricating system can lubricate the equipment without stopping the crusher,which can reduce the manual labor and downtime.
②
Forged Eccentrc Shaft,Greater Bearing Capacity
Common Lubrication Connecting Joint,Efficient Convenient
Abroad application&better feasibility
Compared with the same section jaw crusher,the HD series takes smaller space and much better feasibility with simple and reasonable structure.It applies to metal and non-metal ore,cement,construction,sand and metallurgy industries and so on.
Compared with common jaw crusher used in the procession of construction stone crushing,machine-made sand esp crushing hard stone like basalt,the HD series jaw crusher has higher efficiency and less cost with the best texture.
When processing ferrous and nonferrous metals,the HD series jaw crusher can greatly level up the economic benefits to the clients by efficiently reducing the ore granularity and higher producing capability with more crushing but less grinding.
ECHNICAL PARAMETERS
| Model | Model Feed Opening(mm) | Max.Feeding Size(mm) | Adjustable Range of Discharge Opening(mm) | Capacity(t/h) | Power(KW) |
| HD 80 | 850X800 | 500 | 50-150 | 85-275 | 75/90 |
| HD 98 | 650X980 | 550 | 75-175 | 110-350 | 90/110 |
| HD 110 | 800×1100 | 660 | 100-200 | 215-510 | 110/132 |
| HD 125 | 950X1250 | 800 | 125-225 | 280-650 | 132/160 |
NOTE:The capacity is one ideal passing rate according to the middle hardness material.
VERALL DIMENSIONS
Outline Sketch
Outline Sketch
| Model | A(mm) | B(mm) | (mm) | D(mm) | E(mm) | F(mm) |
| HD 80 | 1620 | 2050 | 1760 | 540 | 800 | 380 |
| HD 98 | 2000 | 2470 | 2180 | 650 | 980 | 470 |
| HD 110 | 2472 | 2875 | 2530 | 800 | 1100 | 455 |
| HD 125 | 2600 | 3320 | 3120 | 950 | 1250 | 619.5 |
