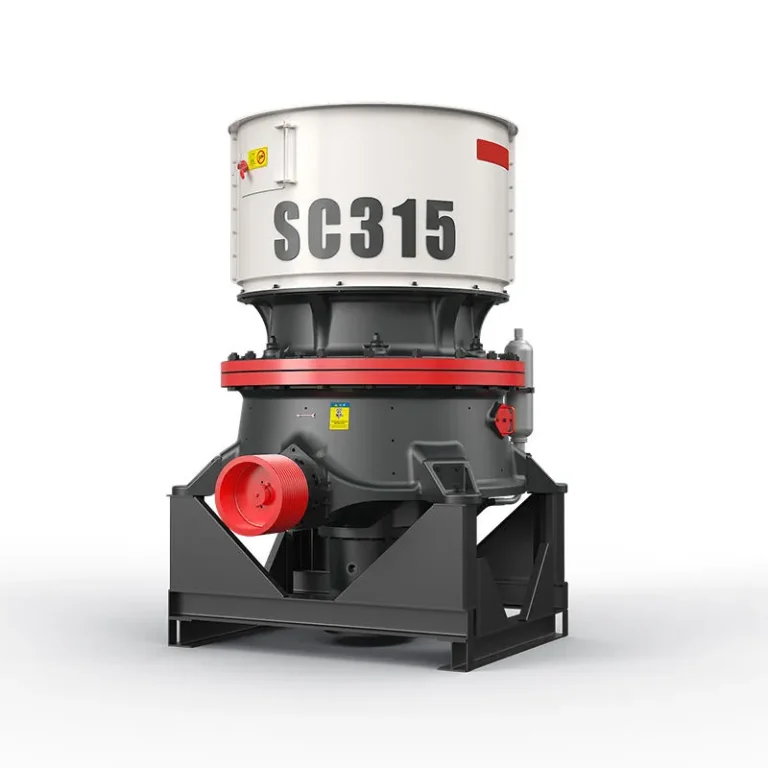

SC single-cylinder cone crusher

Excellent quality and performance

In the crushing and screeningindustry for more than 40 years,KENEX  Machinery  hasaccumulated rich experience in the   design and production application of cone  crushers.Currently,KENEX  Group  has thousands of cone crushers in  operation all over the world.The SC series cone crusher isdeveloped by absorbing the world’s most advanced technology andincorporating the company’s years of design  experience.It  integrates
	mechanical,hydraulic,electrical,intelligent control and remote control. It has the advantages of highefficiency,good  product  shape,hydraulic    adjustment,remoteautomatic  control,multiple  crushing cavity types and adjustment ofeccentricity without changing any parts.The  human-computer  interactioninterface is easy to understand,easy to use and efficient.By selecting the appropriate crushing cavity andeccentricity  in  production,SC  series	cone crusher is an ideal two-stageand three-stage crushing equipment.The compact and easy-to-servicedesign has also become the perfect choice for mobile crushing stations.The remote automatic control systemguarantees the uptime of yourequipment to the greatest extent,so that the cone crusher can still exert   the highest performance level of the  equipment without changing thefeeding  state,and  will not  overload the  crusher.

Low cost of using,high performance and CLP

A large number of on-site datasupports the design of the crushing    cavity type and the high-energy host,  so that the SC series cone crusher     can ensure your operation and higher profits.         The advantages of the crushing Cavity are:·Constant feeding capacity;·Large output and high yield;·Long service life of the liner;·Lowest operating cost;	Middle and late use of liner   CLP crushing cavity,CLP stands for constant crushing cavity type.The almost vertical feed port means that the crushing chamber remains almost unchanged throughout the wear life cycle.
	SC series cone crushers have a wide range of uses.Each model hasmultiple crushing cavities to choose from,and one upper frame can be   used   for   all   cavity   types.Choosing a suitable crushing cavity    and eccentricity can adapt to different working conditions.	The SC series cone crusher can be used as secondary crushingequipment to match the Jaw Crusher  or Gyrotary Crusher,or as the tertiary or fourth crushing equipment,which    can meet most of the users’production needs.

SC系列圆锥破碎机 02

Intelligent monitoring of operation process

Easy to maintain

All parts of the host can be

disassembled from the upper or side, making  operation  more  convenient

and  efficient,and  lower  maintenance costs.

Hydraulic     system

In addition to the easy realization of

the most basic adjustment functions of the  hydraulic  system,itis  more

important that it can effectively protect   the  machine.Its  automatic  high-speed unloading capability can make iron or    unbreakable objects quickly pass

through the rear discharge port and

automatically  reset,reducing  the

change of the output size curve makes the output material always reach or

close to the target grade value while ensuring  productivity,which  brings    higher  economic  benefits.

Positive    pressure    dust-proof

system

The addition of this system makes the internal air pressure of the crusher

higher than the outside air pressure, which can effectively prevent dust

from entering the crusher and keep     the lubricating oil clean to the greatest extent,thereby  prolonging the  life of    each  friction  pair  component,lowering the equipment failure rate and making the replacement cycle of lubricating oil longer,saving a lot of cost to run.

Intelligent  control  system

The addition of the intelligent control system effectively   reduces the frequency of equipment overload,ensuring that the equipment can achieve greater throughput and  lower failure rate;

For the H-type fine crusher,it can automatically adapt to  changes in feed,and can achieve various function modes such as automatic compensation liner wear,its automatic calibration function can realize one-key operation,which  greatly reduces the labor and time investment,and

reduces the use cost;

The man-machine interface of the intelligent control system is more friendly,allowing the operator to

troubleshoot more faster and effectively.

03:05PM    ?ACS plus 2.0IO断开联机AIO<>                            这1编AAAMAA埂件密钥匕              手机网络设置 P 品无设备口       吧          B

Remote  monitoring  and  diagnosis  system

Through the Internet of Things technology,the operating   status of the crusher can be obtained in real time,such as load  conditions,liner  usage,failure  frequency,etc.By

analyzing these data,we can determine possible failures in advance while the equipment is still working.At this time,     the equipment is maintained in advance,which can reduce the loss caused by equipment shutdown and maximize the  production efficiency.

Dimensions

SC-S    SC-S       medium       crushing                                   SC  /SC     fine    crushing

B

The dimensions are for reference only,and are only for pre-installation planning, and should not be used for foundation construction.

Host weight

05

Indicative gradation curve

The product curve and yield depend on the crushability (Wi) of the material,the size distribution of the feed and other factors.  SC-S    medium     crushing    Indicative     gradation     curve

SC  fine   crushing   Indicative  gradation   curve

Crushing cavity

The SC-S medium crushing series has two standard

crushing cavities:

C1—Utra Coarse C2—Coarse

The SC fine crushing series has  three standard crushing cavities:

F1—Ultra Coarse

F2—Intermediate Coarse F3—Fine

Production capacity

It  is  suitable  for  the  output  of  limestone with  a  bulk  density  of  1600  kg/m³,the   feed size,and the properties of stone, which will affect the production

capacity of the equipment.

SC-medium    crushing    production   capacity

SC    fine     crushing    production    capacity

07

Tight-edge   discharge opening CSS(mm)and corresponding production capacity(t/h)

Tight-edge        discharge     opening      CSS(mm)and     corresponding      production     capacity(t/h)

Our cone crusher,

a product with superior performance in the market

①Liner

Using super high alloy  manganese     steel(ZGMn18Cr2),Long   service   life, no  need  for  packing,easy

replacement.

②High  pressure  system

It has automatic overload protection and discharge  port  adjustment

functions.

③Positive pressure dust-proof system

Effectively prevent lubricating oil

pollution and damage the bearing,  Extend the service life of lubricants and  equipment.

④Rib  guard

The lower frame body rib guard plate under alloy material is adopted.

Cooperation   brand

久CASAPPA

SIEMENS

vonFonc

WE NVIEW

Stone crushing process(800-1000tph)

Silo

Vibrating  feeder Model:HSF1862

Power:37KW

<960mm

0-80mm

Thin  oil vibrating  screen Quantity:2

Model:3HX3065 Power:45KW

Jaw  Crusher

Model:CJ160

Power:250KW

Vibrating    Feeder

Quantity:2

Model:GZG1304

Power:2X2.2KW

Single Cylinder cone crusher Quantity:2

Model:SC250S

Power:250KW

Thin  oil vibrating  screen

Quantity:2

Model:3HX2765 Power:45KW

0-5mm                          5-10mm                       10-20mm                  20-31.5mm

11

Common spare parts

Crushing    cavity-fine    crushing

Spindle   friction   disc

Mortar   wall

Lower  frame  body  bushing

Crushing   cavity-medium    crushing

Eccentric  copper  sleeve
